K2213

Actuating elements for remote control, stainless steel, with...

go back

Products
- Operating parts | standard elements
  - Spring plungers, indexing plungers, ball lock pins
    - Indexing plunger
      - Actuating elements for remote control, stainless steel, with mushroom grip, Bowden cable systems

Item description/product images

DescriptionProduct description:The operating elements for manual operation of the Bowden cable systems were specially designed to match the system-compatible indexing plungers. The combination of indexing plunger and actuating element forms a complete system which can be used for many types of application. Differing grip geometries enable optimal handling for the respective application.

Actuation variants: with detent function, without detent function, with rotation lock, rotary cam.
Grip types: Mushroom grip, T-grip, star grip, clamping lever.Material:

Actuating element 1.4305.
Grip thermoplastic.
Setscrew brass.

Version:Stainless steel parts bright.
Setscrew electro zinc-plated.
Plastic grip available in various colours.Note for ordering:We recommend using the online shop configurator to create a complete system with ease.Note:When installing the Bowden cables, the following points should be noted:
The length of the free end of the cable can change due to the layout angle, bending radius and load factors. So, after laying the Bowden cable, the length of the counter-bearing (casing) must be adjusted using the adjusting screw supplied. The adjusting screw is also used to set the pretension in the Bowden cable system.
When laying the cable, particular care must be taken to ensure that the bending radius is not below the minimum value, which in this case is R = 65 mm. A radius which is too narrow can lead to increased wear and higher friction.
Also avoid letting the bending radius briefly go below the minimum value when installing, as this can cause damage to the casing. Also, the casing is designed only to support pressure forces. If pulled too sharply, the inner coil will be stretched and permanently damaged.On request:Special versions.Accessory:Indexing plunger K2214.
Indexing plunger K2215.
Hex nut K0700.
Mounting bracket K0638.
Bowden cable K2116.
Wire cable K2023.
Tension sleeve K2024.
End sleeve K2025.
Setscrew K2026.

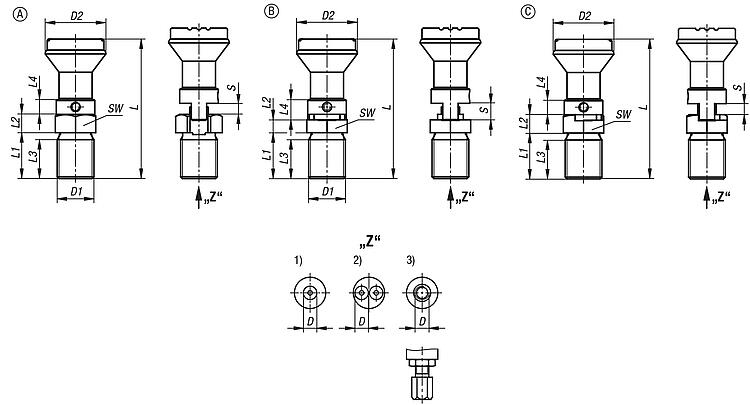

Bowden cable distributor K2042.Supplied withActuating element with plastic grip and optional setscrew.Drawing reference:

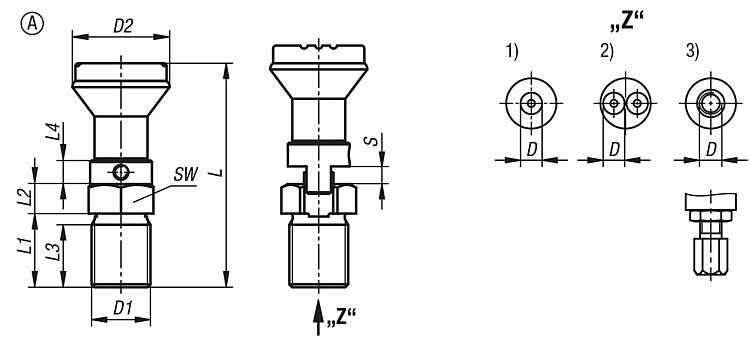

Form A: without detent function

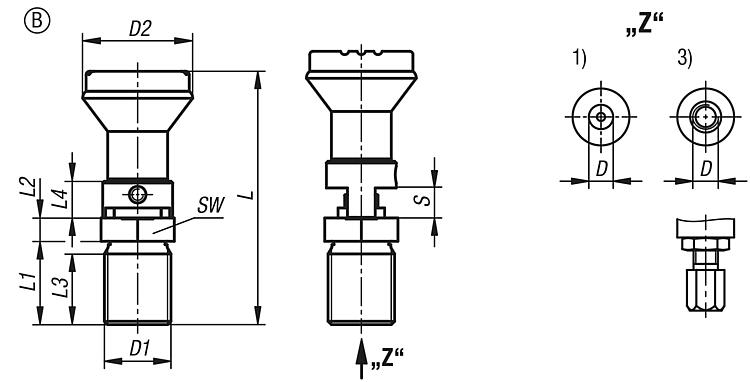

Form B: with detent function

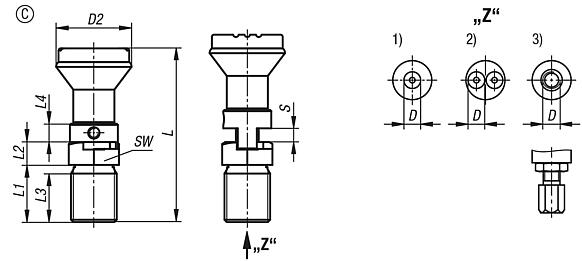

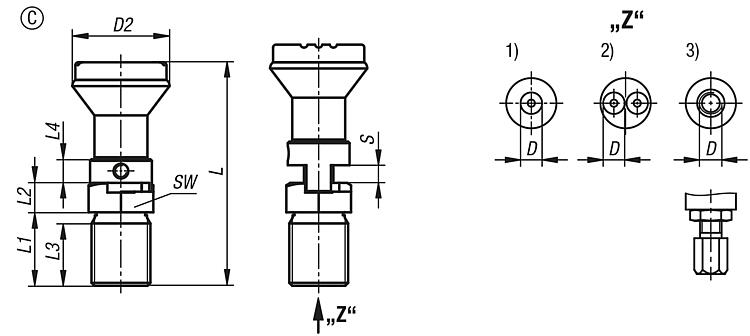

Form C: with detent function and rotation lock

1) Single Bowden cable connection
2) Double Bowden cable connection
3) Single Bowden cable connection with setscrew

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K2213 Actuating elements for remote control, stainless steel, with mushroom grip, Bowden cable systems

333 kB
