K2132Hex head bolt, stainless steel, with low head and seal and... |
go back |
|
Item description/product images |
|
|

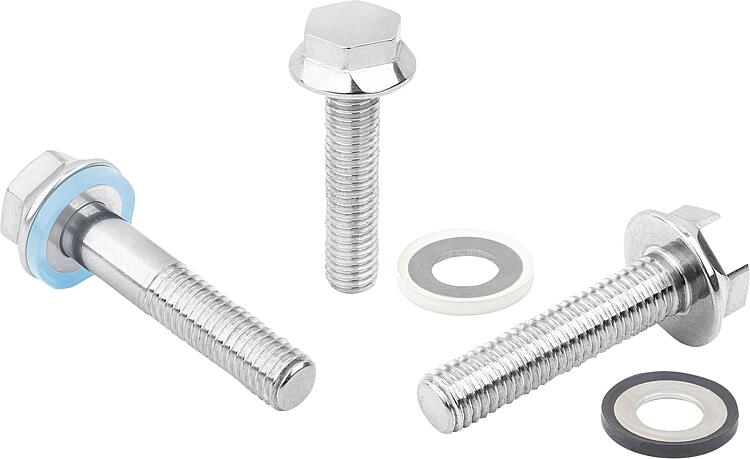

DescriptionProduct description:Set: K2131 hexagon head bolt with low head + Hygienic USIT® seal and shim washer K1491.
Only the combination of hex head bolt with collar and Hygienic USIT® seal and shim washer can ensure a cavity free seal.
The hexagon head bolt with low head for the Hygienic USIT® seal and washer is best suited for mounting in sterile areas and also complies with the EHEDG guidelines, which is confirmed by the corresponding certificate.Material:Hex head bolt: stainless steel 1.4404.
Washer: stainless steel 1.4404.
Seal ring:
75 EPDM 295 (black).
70 EPDM 253815 (white).
75 Fluoroprene® XP 45 (blue). Version:Hexagon head screw: polishedNote:The EHEDG certificate is valid only when a hexagon head bolt with low head K2131 is used in combination with the special matching Hygienic USIT® seal and shim washer K1491.
The function of the Hygienic USIT® screw connection system has been tested in combination with stainless steel materials and standard cleaning materials. The suitability for the respective application must be checked by the user.Accessory:Hexagon cap nut with collar K1493.
Sockets with plastic inserts K1361.
Ring/open-end spanner with protective caps K1362.
Plier wrench with protective jaws K2242.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Component
material | Form | D | L | D1
| B | K | R | SW | D2 | D3 | S | Approval /
Certification | CAD | Acc. | Price | Order |
|---|
| K2132.041X8 | 75 EPDM 295 | A | M4 | 8 | 10,8 | - | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG |  | | 0.00 € | | | K2132.041X10 | 75 EPDM 295 | A | M4 | 10 | 10,8 | - | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.041X12 | 75 EPDM 295 | A | M4 | 12 | 10,8 | - | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.041X16 | 75 EPDM 295 | A | M4 | 16 | 10,8 | - | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.041X20 | 75 EPDM 295 | A | M4 | 20 | 10,8 | - | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.041X25 | 75 EPDM 295 | B | M4 | 25 | 10,8 | 14 | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.041X30 | 75 EPDM 295 | B | M4 | 30 | 10,8 | 14 | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.041X35 | 75 EPDM 295 | B | M4 | 35 | 10,8 | 14 | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.041X40 | 75 EPDM 295 | B | M4 | 40 | 10,8 | 14 | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.051X10 | 75 EPDM 295 | A | M5 | 10 | 11,8 | - | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.051X12 | 75 EPDM 295 | A | M5 | 12 | 11,8 | - | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.051X16 | 75 EPDM 295 | A | M5 | 16 | 11,8 | - | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.051X20 | 75 EPDM 295 | A | M5 | 20 | 11,8 | - | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.051X25 | 75 EPDM 295 | B | M5 | 25 | 11,8 | 16 | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.051X30 | 75 EPDM 295 | B | M5 | 30 | 11,8 | 16 | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.051X35 | 75 EPDM 295 | B | M5 | 35 | 11,8 | 16 | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.051X40 | 75 EPDM 295 | B | M5 | 40 | 11,8 | 16 | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.051X45 | 75 EPDM 295 | B | M5 | 45 | 11,8 | 16 | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.051X50 | 75 EPDM 295 | B | M5 | 50 | 11,8 | 16 | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.061X12 | 75 EPDM 295 | A | M6 | 12 | 14 | - | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.061X16 | 75 EPDM 295 | A | M6 | 16 | 14 | - | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.061X20 | 75 EPDM 295 | A | M6 | 20 | 14 | - | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.061X25 | 75 EPDM 295 | A | M6 | 25 | 14 | - | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.061X30 | 75 EPDM 295 | B | M6 | 30 | 14 | 18 | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.061X35 | 75 EPDM 295 | B | M6 | 35 | 14 | 18 | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.061X40 | 75 EPDM 295 | B | M6 | 40 | 14 | 18 | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.061X45 | 75 EPDM 295 | B | M6 | 45 | 14 | 18 | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.061X50 | 75 EPDM 295 | B | M6 | 50 | 14 | 18 | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.061X60 | 75 EPDM 295 | B | M6 | 60 | 14 | 18 | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.081X16 | 75 EPDM 295 | A | M8 | 16 | 18 | - | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.081X20 | 75 EPDM 295 | A | M8 | 20 | 18 | - | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.081X25 | 75 EPDM 295 | A | M8 | 25 | 18 | - | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.081X30 | 75 EPDM 295 | A | M8 | 30 | 18 | - | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.081X35 | 75 EPDM 295 | A | M8 | 35 | 18 | - | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.081X40 | 75 EPDM 295 | B | M8 | 40 | 18 | 22 | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.081X45 | 75 EPDM 295 | B | M8 | 45 | 18 | 22 | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.081X50 | 75 EPDM 295 | B | M8 | 50 | 18 | 22 | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.081X60 | 75 EPDM 295 | B | M8 | 60 | 18 | 22 | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.081X70 | 75 EPDM 295 | B | M8 | 70 | 18 | 22 | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.081X80 | 75 EPDM 295 | B | M8 | 80 | 18 | 22 | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.101X20 | 75 EPDM 295 | A | M10 | 20 | 22 | - | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.101X25 | 75 EPDM 295 | A | M10 | 25 | 22 | - | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.101X30 | 75 EPDM 295 | A | M10 | 30 | 22 | - | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.101X35 | 75 EPDM 295 | A | M10 | 35 | 22 | - | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.101X40 | 75 EPDM 295 | A | M10 | 40 | 22 | - | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.101X45 | 75 EPDM 295 | B | M10 | 45 | 22 | 26 | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.101X50 | 75 EPDM 295 | B | M10 | 50 | 22 | 26 | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.101X60 | 75 EPDM 295 | B | M10 | 60 | 22 | 26 | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.101X70 | 75 EPDM 295 | B | M10 | 70 | 22 | 26 | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.101X80 | 75 EPDM 295 | B | M10 | 80 | 22 | 26 | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.121X25 | 75 EPDM 295 | A | M12 | 25 | 26,6 | - | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.121X30 | 75 EPDM 295 | A | M12 | 30 | 26,6 | - | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.121X35 | 75 EPDM 295 | A | M12 | 35 | 26,6 | - | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.121X40 | 75 EPDM 295 | A | M12 | 40 | 26,6 | - | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.121X45 | 75 EPDM 295 | A | M12 | 45 | 26,6 | - | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.121X50 | 75 EPDM 295 | B | M12 | 50 | 26,6 | 30 | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.121X60 | 75 EPDM 295 | B | M12 | 60 | 26,6 | 30 | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.121X70 | 75 EPDM 295 | B | M12 | 70 | 26,6 | 30 | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.121X80 | 75 EPDM 295 | B | M12 | 80 | 26,6 | 30 | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.161X30 | 75 EPDM 295 | A | M16 | 30 | 35 | - | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.161X35 | 75 EPDM 295 | A | M16 | 35 | 35 | - | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.161X40 | 75 EPDM 295 | A | M16 | 40 | 35 | - | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.161X45 | 75 EPDM 295 | A | M16 | 45 | 35 | - | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.161X50 | 75 EPDM 295 | A | M16 | 50 | 35 | - | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.161X60 | 75 EPDM 295 | A | M16 | 60 | 35 | - | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.161X70 | 75 EPDM 295 | B | M16 | 70 | 35 | 38 | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.161X80 | 75 EPDM 295 | B | M16 | 80 | 35 | 38 | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.042X8 | 70 EPDM 253815 | A | M4 | 8 | 10,8 | - | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.042X10 | 70 EPDM 253815 | A | M4 | 10 | 10,8 | - | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.042X12 | 70 EPDM 253815 | A | M4 | 12 | 10,8 | - | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.042X16 | 70 EPDM 253815 | A | M4 | 16 | 10,8 | - | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.042X20 | 70 EPDM 253815 | A | M4 | 20 | 10,8 | - | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.042X25 | 70 EPDM 253815 | B | M4 | 25 | 10,8 | 14 | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.042X30 | 70 EPDM 253815 | B | M4 | 30 | 10,8 | 14 | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.042X35 | 70 EPDM 253815 | B | M4 | 35 | 10,8 | 14 | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.042X40 | 70 EPDM 253815 | B | M4 | 40 | 10,8 | 14 | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.052X10 | 70 EPDM 253815 | A | M5 | 10 | 11,8 | - | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.052X12 | 70 EPDM 253815 | A | M5 | 12 | 11,8 | - | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.052X16 | 70 EPDM 253815 | A | M5 | 16 | 11,8 | - | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.052X20 | 70 EPDM 253815 | A | M5 | 20 | 11,8 | - | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.052X25 | 70 EPDM 253815 | B | M5 | 25 | 11,8 | 16 | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.052X30 | 70 EPDM 253815 | B | M5 | 30 | 11,8 | 16 | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.052X35 | 70 EPDM 253815 | B | M5 | 35 | 11,8 | 16 | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.052X40 | 70 EPDM 253815 | B | M5 | 40 | 11,8 | 16 | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.052X45 | 70 EPDM 253815 | B | M5 | 45 | 11,8 | 16 | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.052X50 | 70 EPDM 253815 | B | M5 | 50 | 11,8 | 16 | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.062X12 | 70 EPDM 253815 | A | M6 | 12 | 14 | - | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.062X16 | 70 EPDM 253815 | A | M6 | 16 | 14 | - | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.062X20 | 70 EPDM 253815 | A | M6 | 20 | 14 | - | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.062X25 | 70 EPDM 253815 | A | M6 | 25 | 14 | - | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.062X30 | 70 EPDM 253815 | B | M6 | 30 | 14 | 18 | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.062X35 | 70 EPDM 253815 | B | M6 | 35 | 14 | 18 | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.062X40 | 70 EPDM 253815 | B | M6 | 40 | 14 | 18 | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.062X45 | 70 EPDM 253815 | B | M6 | 45 | 14 | 18 | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.062X50 | 70 EPDM 253815 | B | M6 | 50 | 14 | 18 | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.062X60 | 70 EPDM 253815 | B | M6 | 60 | 14 | 18 | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.082X16 | 70 EPDM 253815 | A | M8 | 16 | 18 | - | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.082X20 | 70 EPDM 253815 | A | M8 | 20 | 18 | - | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.082X25 | 70 EPDM 253815 | A | M8 | 25 | 18 | - | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.082X30 | 70 EPDM 253815 | A | M8 | 30 | 18 | - | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.082X35 | 70 EPDM 253815 | A | M8 | 35 | 18 | - | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.082X40 | 70 EPDM 253815 | B | M8 | 40 | 18 | 22 | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.082X45 | 70 EPDM 253815 | B | M8 | 45 | 18 | 22 | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.082X50 | 70 EPDM 253815 | B | M8 | 50 | 18 | 22 | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.082X60 | 70 EPDM 253815 | B | M8 | 60 | 18 | 22 | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.082X70 | 70 EPDM 253815 | B | M8 | 70 | 18 | 22 | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.082X80 | 70 EPDM 253815 | B | M8 | 80 | 18 | 22 | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.102X20 | 70 EPDM 253815 | A | M10 | 20 | 22 | - | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.102X25 | 70 EPDM 253815 | A | M10 | 25 | 22 | - | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.102X30 | 70 EPDM 253815 | A | M10 | 30 | 22 | - | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.102X35 | 70 EPDM 253815 | A | M10 | 35 | 22 | - | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.102X40 | 70 EPDM 253815 | A | M10 | 40 | 22 | - | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.102X45 | 70 EPDM 253815 | B | M10 | 45 | 22 | 26 | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.102X50 | 70 EPDM 253815 | B | M10 | 50 | 22 | 26 | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.102X60 | 70 EPDM 253815 | B | M10 | 60 | 22 | 26 | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.102X70 | 70 EPDM 253815 | B | M10 | 70 | 22 | 26 | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.102X80 | 70 EPDM 253815 | B | M10 | 80 | 22 | 26 | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.122X25 | 70 EPDM 253815 | A | M12 | 25 | 26,6 | - | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.122X30 | 70 EPDM 253815 | A | M12 | 30 | 26,6 | - | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.122X35 | 70 EPDM 253815 | A | M12 | 35 | 26,6 | - | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.122X40 | 70 EPDM 253815 | A | M12 | 40 | 26,6 | - | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.122X45 | 70 EPDM 253815 | A | M12 | 45 | 26,6 | - | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.122X50 | 70 EPDM 253815 | B | M12 | 50 | 26,6 | 30 | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.122X60 | 70 EPDM 253815 | B | M12 | 60 | 26,6 | 30 | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.122X70 | 70 EPDM 253815 | B | M12 | 70 | 26,6 | 30 | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.122X80 | 70 EPDM 253815 | B | M12 | 80 | 26,6 | 30 | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.162X30 | 70 EPDM 253815 | A | M16 | 30 | 35 | - | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.162X35 | 70 EPDM 253815 | A | M16 | 35 | 35 | - | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.162X40 | 70 EPDM 253815 | A | M16 | 40 | 35 | - | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.162X45 | 70 EPDM 253815 | A | M16 | 45 | 35 | - | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.162X50 | 70 EPDM 253815 | A | M16 | 50 | 35 | - | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.162X60 | 70 EPDM 253815 | A | M16 | 60 | 35 | - | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.162X70 | 70 EPDM 253815 | B | M16 | 70 | 35 | 38 | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.162X80 | 70 EPDM 253815 | B | M16 | 80 | 35 | 38 | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.044X8 | fluoroprene XP 45 | A | M4 | 8 | 10,8 | - | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.044X10 | fluoroprene XP 45 | A | M4 | 10 | 10,8 | - | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.044X12 | fluoroprene XP 45 | A | M4 | 12 | 10,8 | - | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.044X16 | fluoroprene XP 45 | A | M4 | 16 | 10,8 | - | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.044X20 | fluoroprene XP 45 | A | M4 | 20 | 10,8 | - | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.044X25 | fluoroprene XP 45 | B | M4 | 25 | 10,8 | 14 | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.044X30 | fluoroprene XP 45 | B | M4 | 30 | 10,8 | 14 | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.044X35 | fluoroprene XP 45 | B | M4 | 35 | 10,8 | 14 | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.044X40 | fluoroprene XP 45 | B | M4 | 40 | 10,8 | 14 | 5,2 | 0,45 | 7 | 9,7 | 4,1 | 1 | EHEDG | | | 0.00 € | | | K2132.054X10 | fluoroprene XP 45 | A | M5 | 10 | 11,8 | - | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.054X12 | fluoroprene XP 45 | A | M5 | 12 | 11,8 | - | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.054X16 | fluoroprene XP 45 | A | M5 | 16 | 11,8 | - | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.054X20 | fluoroprene XP 45 | A | M5 | 20 | 11,8 | - | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.054X25 | fluoroprene XP 45 | B | M5 | 25 | 11,8 | 16 | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.054X30 | fluoroprene XP 45 | B | M5 | 30 | 11,8 | 16 | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.054X35 | fluoroprene XP 45 | B | M5 | 35 | 11,8 | 16 | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.054X40 | fluoroprene XP 45 | B | M5 | 40 | 11,8 | 16 | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.054X45 | fluoroprene XP 45 | B | M5 | 45 | 11,8 | 16 | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.054X50 | fluoroprene XP 45 | B | M5 | 50 | 11,8 | 16 | 6 | 0,5 | 8 | 10,7 | 5,1 | 1 | EHEDG | | | 0.00 € | | | K2132.064X12 | fluoroprene XP 45 | A | M6 | 12 | 14 | - | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.064X16 | fluoroprene XP 45 | A | M6 | 16 | 14 | - | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.064X20 | fluoroprene XP 45 | A | M6 | 20 | 14 | - | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.064X25 | fluoroprene XP 45 | A | M6 | 25 | 14 | - | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.064X30 | fluoroprene XP 45 | B | M6 | 30 | 14 | 18 | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.064X35 | fluoroprene XP 45 | B | M6 | 35 | 14 | 18 | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.064X40 | fluoroprene XP 45 | B | M6 | 40 | 14 | 18 | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.064X45 | fluoroprene XP 45 | B | M6 | 45 | 14 | 18 | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.064X50 | fluoroprene XP 45 | B | M6 | 50 | 14 | 18 | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.064X60 | fluoroprene XP 45 | B | M6 | 60 | 14 | 18 | 6,5 | 0,5 | 10 | 13,1 | 6,1 | 1 | EHEDG | | | 0.00 € | | | K2132.084X16 | fluoroprene XP 45 | A | M8 | 16 | 18 | - | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.084X20 | fluoroprene XP 45 | A | M8 | 20 | 18 | - | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.084X25 | fluoroprene XP 45 | A | M8 | 25 | 18 | - | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.084X30 | fluoroprene XP 45 | A | M8 | 30 | 18 | - | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.084X35 | fluoroprene XP 45 | A | M8 | 35 | 18 | - | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.084X40 | fluoroprene XP 45 | B | M8 | 40 | 18 | 22 | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.084X45 | fluoroprene XP 45 | B | M8 | 45 | 18 | 22 | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.084X50 | fluoroprene XP 45 | B | M8 | 50 | 18 | 22 | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.084X60 | fluoroprene XP 45 | B | M8 | 60 | 18 | 22 | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.084X70 | fluoroprene XP 45 | B | M8 | 70 | 18 | 22 | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.084X80 | fluoroprene XP 45 | B | M8 | 80 | 18 | 22 | 7,6 | 0,6 | 13 | 16,9 | 8,1 | 1 | EHEDG | | | 0.00 € | | | K2132.104X20 | fluoroprene XP 45 | A | M10 | 20 | 22 | - | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.104X25 | fluoroprene XP 45 | A | M10 | 25 | 22 | - | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.104X30 | fluoroprene XP 45 | A | M10 | 30 | 22 | - | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.104X35 | fluoroprene XP 45 | A | M10 | 35 | 22 | - | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.104X40 | fluoroprene XP 45 | A | M10 | 40 | 22 | - | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.104X45 | fluoroprene XP 45 | B | M10 | 45 | 22 | 26 | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.104X50 | fluoroprene XP 45 | B | M10 | 50 | 22 | 26 | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.104X60 | fluoroprene XP 45 | B | M10 | 60 | 22 | 26 | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.104X70 | fluoroprene XP 45 | B | M10 | 70 | 22 | 26 | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.104X80 | fluoroprene XP 45 | B | M10 | 80 | 22 | 26 | 9 | 0,75 | 16 | 21,2 | 10,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.124X25 | fluoroprene XP 45 | A | M12 | 25 | 26,6 | - | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.124X30 | fluoroprene XP 45 | A | M12 | 30 | 26,6 | - | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.124X35 | fluoroprene XP 45 | A | M12 | 35 | 26,6 | - | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.124X40 | fluoroprene XP 45 | A | M12 | 40 | 26,6 | - | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.124X45 | fluoroprene XP 45 | A | M12 | 45 | 26,6 | - | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.124X50 | fluoroprene XP 45 | B | M12 | 50 | 26,6 | 30 | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.124X60 | fluoroprene XP 45 | B | M12 | 60 | 26,6 | 30 | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.124X70 | fluoroprene XP 45 | B | M12 | 70 | 26,6 | 30 | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.124X80 | fluoroprene XP 45 | B | M12 | 80 | 26,6 | 30 | 11,5 | 0,9 | 18 | 25,5 | 12,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.164X30 | fluoroprene XP 45 | A | M16 | 30 | 35 | - | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.164X35 | fluoroprene XP 45 | A | M16 | 35 | 35 | - | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.164X40 | fluoroprene XP 45 | A | M16 | 40 | 35 | - | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.164X45 | fluoroprene XP 45 | A | M16 | 45 | 35 | - | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.164X50 | fluoroprene XP 45 | A | M16 | 50 | 35 | - | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.164X60 | fluoroprene XP 45 | A | M16 | 60 | 35 | - | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.164X70 | fluoroprene XP 45 | B | M16 | 70 | 35 | 38 | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | | | K2132.164X80 | fluoroprene XP 45 | B | M16 | 80 | 35 | 38 | 13,5 | 1,2 | 24 | 33,9 | 16,1 | 1,5 | EHEDG | | | 0.00 € | |
