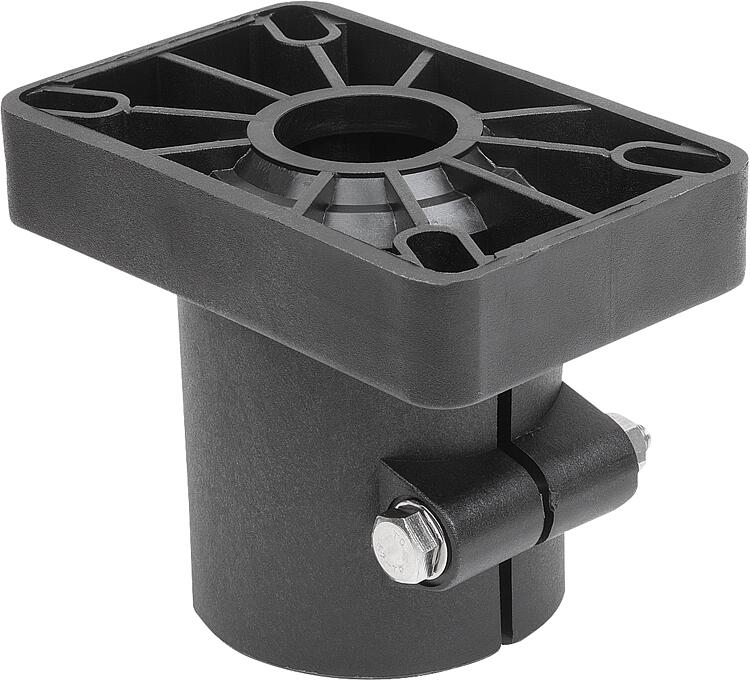

K2313_BTube clamps, support head, plastic, for round tubes |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Thermoplastic.
Nuts and screws stainless steel.Version:Black.
Screws and nuts bright.Note:The round tube is clamped via screw.
The tube clamp is mounted under the conveyor system.
Suitable for DIN EN 10220 steel tubes.
Form A: Tube clamp with hole.

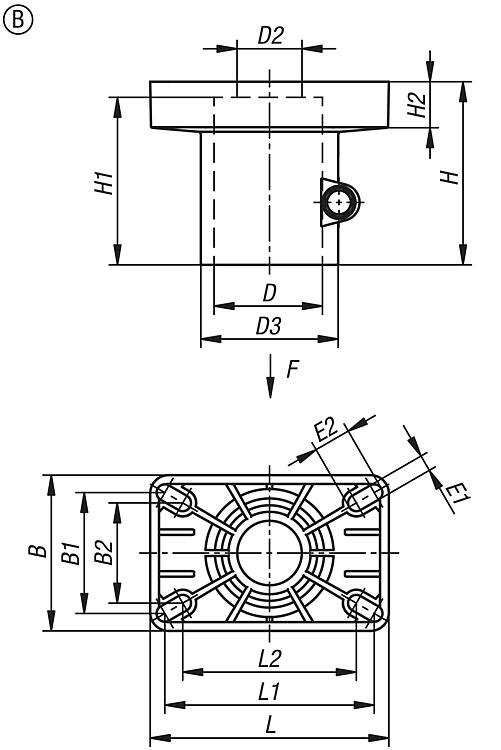

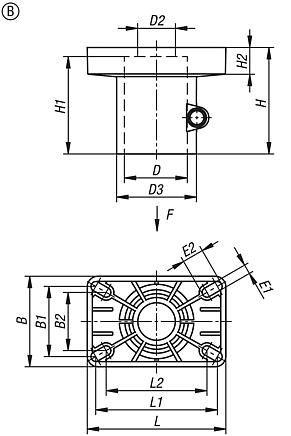

Form B: Tube clamp with slotted hole.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | B
| B1 | B2 | D | D2 | D3 | E1 | E2 | H | H1 | H2 | L | L1 | L2 | F
max. kN
| CAD | Acc. | Price | Order |
|---|
| K2313.148 | B | 85 | 65 | 55 | 48,3 | 35 | 75 | 9 | 20 | 100 | 90 | 25 | 130 | 115 | 95 | 2 |  | | 0.00 € | | | K2313.160 | B | 85 | 65 | 55 | 60,3 | 35 | 75 | 9 | 20 | 100 | 90 | 25 | 130 | 115 | 95 | 2 | | | 0.00 € | |
