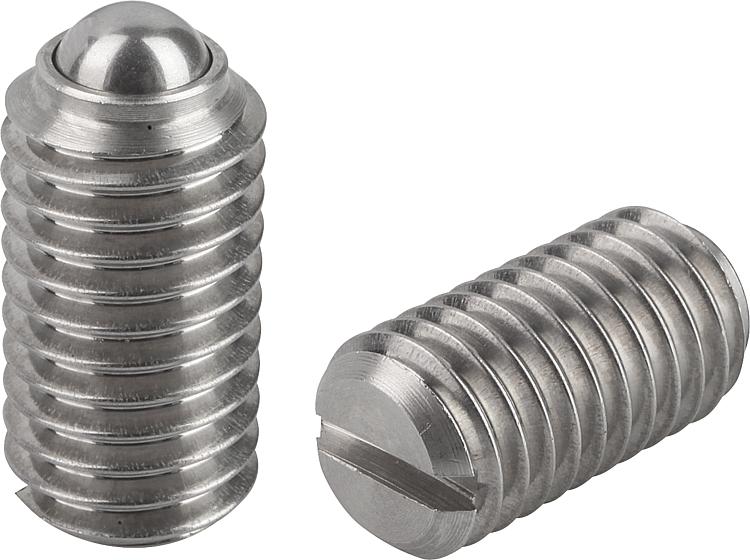

Spring plungers with slot and ball, stainless steel, standard spring force
 K0310_SF

Spring plungers with slot and ball, stainless steel, standard...

 go back

Item description/product images
DescriptionMaterial:

Sleeve 1.4305.
Ball 1.4034.
Spring 1.4310.

Version:Bright. Ball hardened.Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet K0310_SF Spring plungers with slot and ball, standard spring force 208 kB

Drawings

Spring plungers with slot and ball, stainless steel, standard spring force

Item selection/filter
Order No.

DD1LHNSpring force
initial pressure
F1 approx. N		Spring force
final pressure
F2 approx. N		CADAcc.PriceOrder
K0310.03M31,570,40,41,53on request
K0310.04M42,590,80,6410on request
K0310.05M53120,90,8611on request
K0310.06M63,51411913on request
K0310.08M85161,51,21530on request
K0310.10M1061921,62035on request
K0310.12M128222,523055on request
K0310.16M1610243,52,565125on request
K0310.20M2012304,52,580160on request
