      - Indexing plungers, steel or stainless steel with plastic mushroom grip and cap

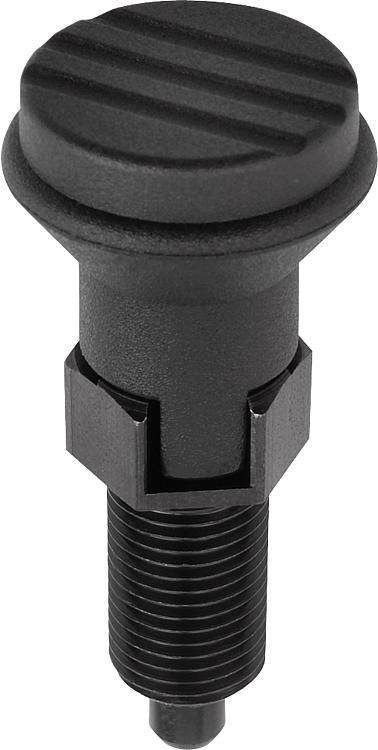

        Indexing plungers, steel or stainless steel with plastic mushroom grip and cap, with locking slot, no locknut

Item description/product images

DescriptionMaterial:

Steel version:
threaded sleeve and indexing pin, free-cutting steel.

Stainless steel version:
Threaded sleeve $s1.4305..
Locking pin hardened 1.4034.
Locking pin not hardened $s1.4305..

Mushroom grip. thermoplastic.

Version:Steel version:
Threaded sleeve black oxidised.
Indexing pin hardened, ground and black oxidised.
Stainless steel version:
Threaded sleeve bright.
Indexing pin hardened and ground, bright.
Indexing pin not hardened and ground, bright.

Mushroom grip thermoplastic black grey RAL7021.On request:Special versions.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0339_C Indexing plungers, steel or stainless steel with plastic mushroom grip and locking slot

239 kB

Drawings

Item selection/filter

Order No.	Form	Main material	locating pin	D	D1	D2	L	L1	L2	L3	Travel S	SW1	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
K0339.3105	C	steel	hardened	5	M10x1	21	47	17	7	15	5	13	1,3	5	12	on request
K0339.3206	C	steel	hardened	6	M12x1,5	25	56	20	8	17	6	14	1,8	6	14	on request
K0339.3308	C	steel	hardened	8	M16x1,5	33	74	26	10	23	8	19	2,3	15	35	on request
K0339.3410	C	steel	hardened	10	M20x1,5	33	80	28	12	25	10	22	2,8	15	34	on request
K0339.03105	C	stainless steel	hardened	5	M10x1	21	47	17	7	15	5	13	1,3	5	12	on request
K0339.03206	C	stainless steel	hardened	6	M12x1,5	25	56	20	8	17	6	14	1,8	6	14	on request
K0339.03308	C	stainless steel	hardened	8	M16x1,5	33	74	26	10	23	8	19	2,3	15	35	on request
K0339.03410	C	stainless steel	hardened	10	M20x1,5	33	80	28	12	25	10	22	2,8	15	34	on request
K0339.13105	C	stainless steel	not hardened	5	M10x1	21	47	17	7	15	5	13	1,3	5	12	on request
K0339.13206	C	stainless steel	not hardened	6	M12x1,5	25	56	20	8	17	6	14	1,8	6	14	on request
K0339.13308	C	stainless steel	not hardened	8	M16x1,5	33	74	26	10	23	8	19	2,3	15	35	on request
K0339.13410	C	stainless steel	not hardened	10	M20x1,5	33	80	28	12	25	10	22	2,8	15	34	on request
