K2378Steel or stainless steel pins for guide rollers |
go back |
|
Item description/product images |
|
|

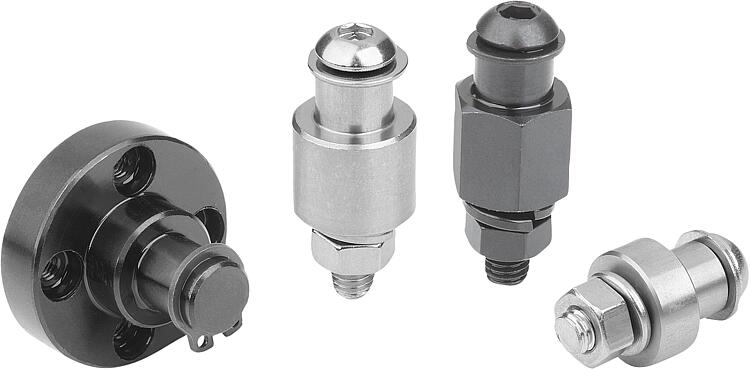

DescriptionMaterial:Steel or stainless steel.Version:Steel black oxidised.

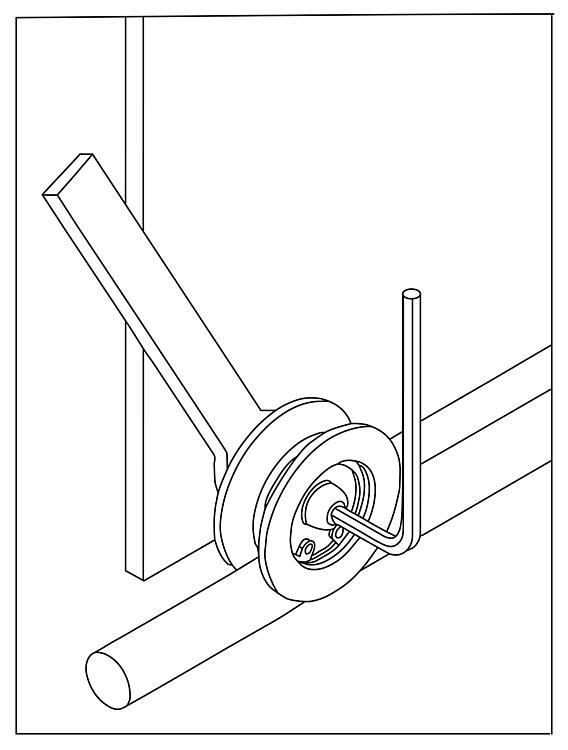

Stainless steel bright.Note:Form C permits the height of the guide roller to be adjusted. After the height has been set, the screw is tightened (see application image).
The tolerance on dimension D deviates by items K2378.3006110, K2378.3008130, K2378.3010160, K2378.3012160 and K2378.3015170.

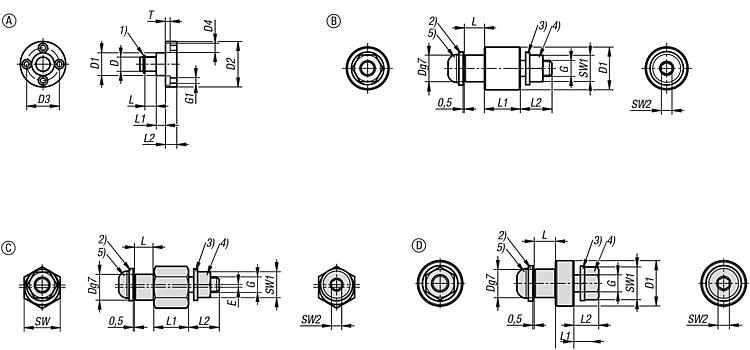

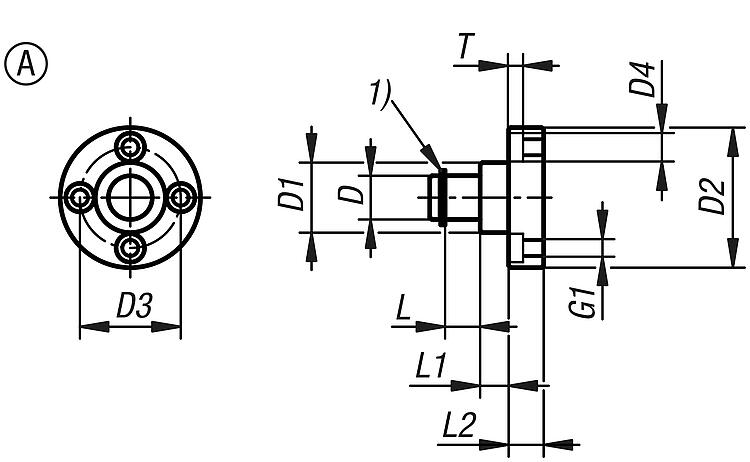

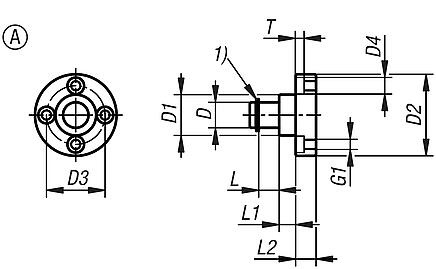

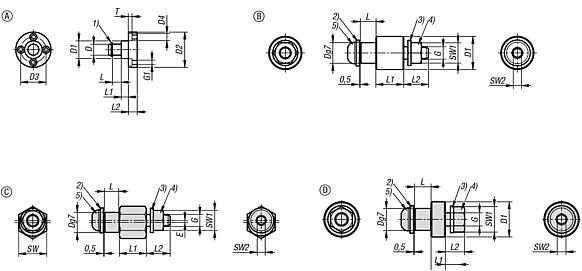

Form A: with flange.

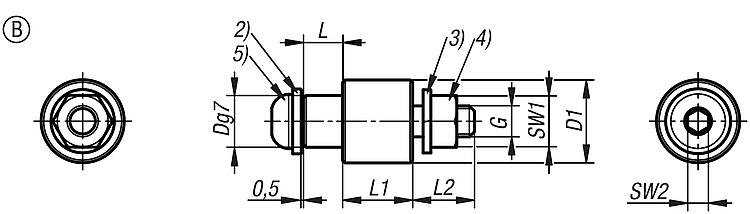

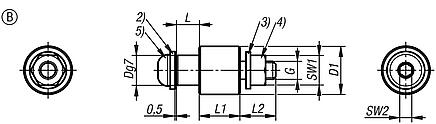

Form B: cylindrical.

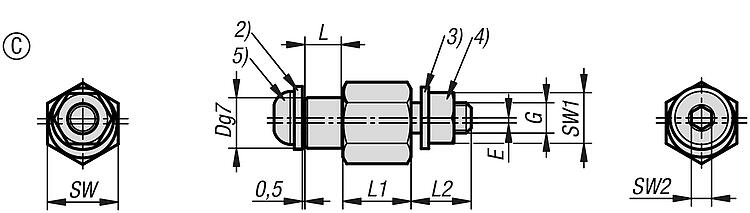

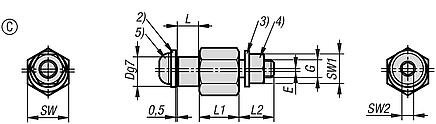

Form C: offset.

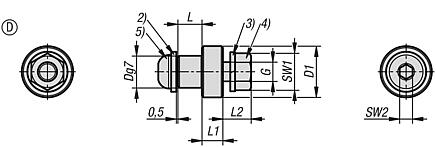

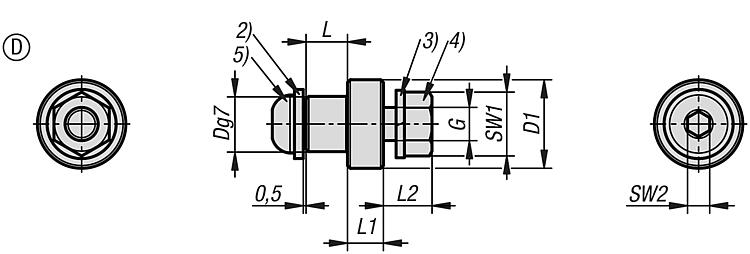

Form D: short.Accessory:K2372.002008 matches K2378.3006055.
K2372.102008 and K2372.102509 match K2378.3006110.
K2372.103011 and K2372.103511 match K2378.3008130.
K2372.104012 matches K2378.3010160.
K2372.104514 and K2372.105014 match K2378.3012160.
K2372.105515 and K2372.106015 match K2378.3015170.
Other pins:
Remaining guide roller K2372.
Guide rollers K2373, K2374, K2375, K2376 and K2377.Drawing reference:1) Circlip
2) Washer
3) Spring washer
4) Hex nut
5) Screw with flattened pan head and hex socket DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
|
| Order No. | D | D1 | Form | G | L | L1 | L2 | Main
material | SW1 | SW2 | CAD | Acc. | Price | Order |
|---|
| K2378.1006060 | 6 | 10 | B | M4 | 6 | 8,5 | 9,7 | steel | 7 | 2,5 |  | | on request | | | K2378.1008070 | 8 | 12 | B | M5 | 7 | 12 | 10 | steel | 8 | 3 | | | on request | | | K2378.1010080 | 10 | 16 | B | M6 | 8 | 13,5 | 11,9 | steel | 10 | 4 | | | on request | | | K2378.1012100 | 12 | 19 | B | M8 | 10 | 15,5 | 12,9 | steel | 13 | 5 | | | on request | | | K2378.1015110 | 15 | 22 | B | M10 | 11 | 18,5 | 13,5 | steel | 17 | 6 | | | on request | | | K2378.1108070 | 8 | 12 | B | M5 | 7 | 12 | 10 | stainless steel | 8 | 3 | | | on request | | | K2378.1110080 | 10 | 16 | B | M6 | 8 | 13,5 | 11,9 | stainless steel | 10 | 4 | | | on request | | | K2378.1112100 | 12 | 19 | B | M8 | 10 | 15,5 | 12,9 | stainless steel | 13 | 5 | | | on request | |
|
| Order No. | D | E | Form | G | L | L1 | L2 | Main
material | SW | SW1 | SW2 | CAD | Acc. | Price | Order |
|---|
| K2378.2006060 | 6 | 0,3 | C | M4 | 6 | 8,5 | 9,7 | steel | 10 | 7 | 2,5 | | | on request | | | K2378.2008070 | 8 | 0,8 | C | M5 | 7 | 12 | 10 | steel | 14 | 8 | 3 | | | on request | | | K2378.2010080 | 10 | 1 | C | M6 | 8 | 13,5 | 11,9 | steel | 14 | 10 | 4 | | | on request | | | K2378.2012100 | 12 | 1 | C | M8 | 10 | 15,5 | 12,9 | steel | 17 | 13 | 5 | | | on request | | | K2378.2015110 | 15 | 1,5 | C | M10 | 11 | 18,5 | 13,5 | steel | 19 | 17 | 6 | | | on request | | | K2378.2108070 | 8 | 0,8 | C | M5 | 7 | 12 | 10 | stainless steel | 14 | 8 | 3 | | | on request | | | K2378.2110080 | 10 | 1 | C | M6 | 8 | 13,5 | 11,9 | stainless steel | 14 | 10 | 4 | | | on request | | | K2378.2112100 | 12 | 1 | C | M8 | 10 | 15,5 | 12,9 | stainless steel | 17 | 13 | 5 | | | on request | |
|
| Order No. | D | D1 | Form | G | L | L1 | L2 | Main
material | SW1 | SW2 | CAD | Acc. | Price | Order |
|---|
| K2378.3006055 | 6 | 10 | D | M4 | 5,5 | 4 | 5,7 | steel | 7 | 2,5 | | | on request | | | K2378.3006060 | 6 | 10 | D | M4 | 6 | 4 | 5,2 | steel | 7 | 2,5 | | | on request | | | K2378.3006110 | 6 | 10 | D | M4 | 11 | 4 | 9,2 | steel | 7 | 2,5 | | | on request | | | K2378.3008070 | 8 | 12 | D | M5 | 7 | 5,5 | 6,5 | steel | 8 | 3 | | | on request | | | K2378.3008130 | 8 | 12 | D | M5 | 13 | 5,5 | 10,5 | steel | 8 | 3 | | | on request | | | K2378.3010080 | 10 | 16 | D | M6 | 8 | 6,5 | 8,9 | steel | 10 | 4 | | | on request | | | K2378.3010160 | 10 | 16 | D | M6 | 16 | 6,5 | 10,9 | steel | 10 | 4 | | | on request | | | K2378.3012100 | 12 | 19 | D | M8 | 10 | 7,5 | 10,9 | steel | 13 | 5 | | | on request | | | K2378.3012160 | 12 | 19 | D | M8 | 16 | 7,5 | 14,9 | steel | 13 | 5 | | | on request | | | K2378.3015110 | 15 | 22 | D | M10 | 11 | 10 | 12 | steel | 17 | 6 | | | on request | | | K2378.3015170 | 15 | 22 | D | M10 | 17 | 10 | 16 | steel | 17 | 6 | | | on request | | | K2378.3108070 | 8 | 12 | D | M5 | 7 | 5,5 | 6,5 | stainless steel | 8 | 3 | | | on request | | | K2378.3110080 | 10 | 16 | D | M6 | 8 | 6,5 | 8,9 | stainless steel | 10 | 4 | | | on request | | | K2378.3112100 | 12 | 19 | D | M8 | 10 | 7,5 | 10,9 | stainless steel | 13 | 5 | | | on request | |
|
