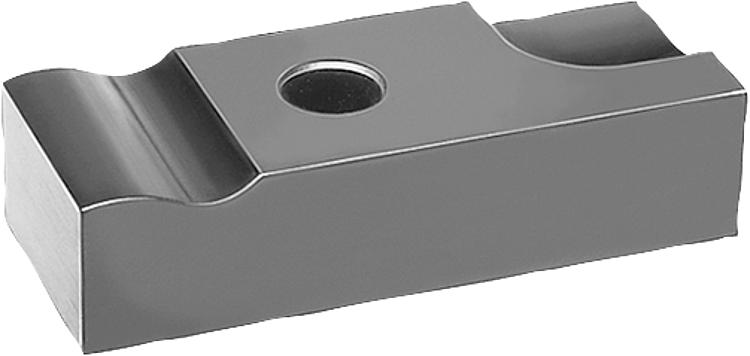

K2427Clamp straps swivel-heel |
go back |
|
Item description/product images |
|
|

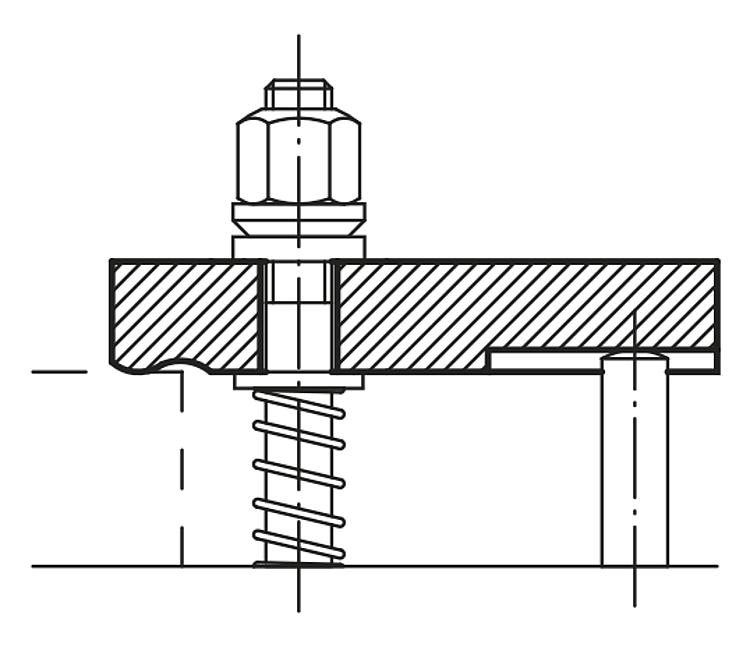

DescriptionMaterial:Carbon steel 1.1191Version:Black oxidised.Note:Recommended clamp strap supports: K0305 and K0306.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.

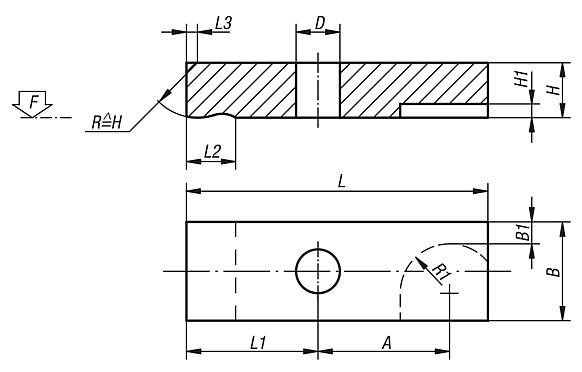

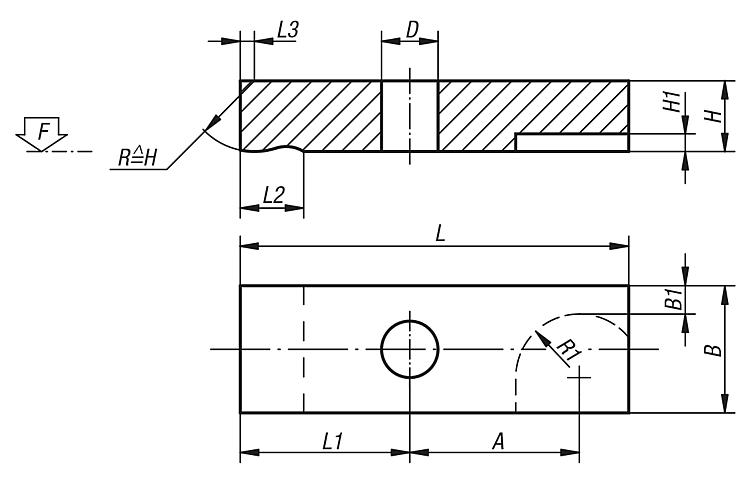

| L | L1 | L2 | L3 | B | B1 | H | H1 | D | A | R1 | F
kN | CAD | Acc. | Price | Order |
|---|
| K2427.05 | 32 | 14 | 8 | 1,2 | 12 | 2,5 | 8 | 3 | 5,5 | 14 | 7 | 3,42 |  | | on request | | | K2427.06 | 40 | 17 | 10 | 1,6 | 16 | 4 | 10 | 3 | 7 | 18 | 8 | 4,82 | | | on request | | | K2427.08 | 50 | 22 | 12 | 2 | 20 | 5 | 12 | 4 | 9 | 22 | 10 | 8,77 | | | on request | | | K2427.10 | 63 | 28 | 16 | 2,5 | 25 | 6,5 | 16 | 4 | 11 | 27 | 12 | 13,9 | | | on request | | | K2427.12 | 80 | 35 | 20 | 3 | 32 | 9 | 20 | 5 | 14 | 35 | 14 | 20,2 | | | on request | | | K2427.14 | 100 | 44 | 25 | 4 | 40 | 12 | 25 | 6 | 16 | 44 | 16 | 27,6 | | | on request | | | K2427.16 | 125 | 55 | 32 | 5 | 50 | 16 | 30 | 6 | 18 | 54 | 18 | 37,8 | | | on request | | | K2427.20 | 160 | 75 | 40 | 6 | 60 | 20,5 | 30 | 8 | 22 | 65 | 22 | 58,8 | | | on request | |
